How to Build a Rideshare Dispatch System with Google Maps Geofencing

Do you want to build a real rideshare dispatch system for an on-demand ride-hailing / ride-sharing mobile app? If so, you’re in the right place. This tutorial will walk you through setting up a deployable dispatch foundation in about a week. No, this won’t be your average application showing you a map on a screen. We’ll focus on two small but high-impact/advanced features that real taxi apps and ride-hailing apps rely on:

• Geo-fenced Driver Eligibility — only drivers physically inside the pickup zone are eligible for trips.

• Fair FIFO Dispatch Queue — once eligible, drivers are assigned in first-in/first-out order for predictable, dispute-free hand-offs.

We’ll utilize the Google Maps API (a location-based services API used for routing, route optimization, traffic data, points of interest, and map tiles) alongside PubNub to implement real-time App-Store-grade behavior you see on iOS/Android production apps step-by-step. At the bottom, you’ll find the resources I referenced while building this. Lastly, everything used here has a free tier — you can build this for free.

Who is this for? A startup or development company building an MVP for Uber/Lyft-style taxi booking in urban areas, taxi service providers and taxi companies modernizing their backend, or teams aiming to streamline app development and optimize user experience, customer satisfaction, and rider/driver retention.

What You’ll Build

1. Feature 1 — Geofenced Eligibility (H3 + PubNub Presence/State)
   Devices convert GPS location data/device location to H3 hex cells and flip a lightweight inZone flag. Eligibility becomes a constant-time lookup: currentCell ∈ allowedCells. These virtual boundaries (aka geofencing) are fast and reliable for location tracking.

2. Feature 2 — Fair FIFO Dispatch Queue
   When inZone becomes true, a driver joins a queue with a joinTs. New rider requests go to the head of the line; timeouts bump the driver and continue. This reduces wait times and driver travel time while keeping assignment algorithms simple and auditable.

We’ll ship one tiny, user-friendly interactive component: a Queue Visualizer you can drop into a Next.js page to simulate join/leave/assign behavior.

These two features are the core of geofencing technology, and we can utilize PubNub to make it easier to create a scalable production-grade taxi booking application—whether it is Lyft, Uber, DoorDash, a mobile app or a web app. They all use this functionality at their core for real-time tracking, notifications (for in-app driver pings), and fair dispatch.

Prerequisites

• Basic React/Next.js (frameworks & project dependencies)

• Node.js 18+

• A free PubNub account (for real-time messaging)

• (Optional) Google Cloud project if you want to draw maps (the eligibility logic doesn’t require Maps).

• (Optional) A test device on Android (uses Google Play services / play services) or iOS for geolocation/current location field testing.

MVP tip: You can launch a minimal, automate-friendly queue + eligibility MVP first, then layer advanced features like driver in-app notifications, surge pricing, and fleet management dashboards.

Set up your PubNub Account

1. Go to admin.pubnub.com/signup and create a free account.

2. If you already have one, sign in to your PubNub Dashboard.

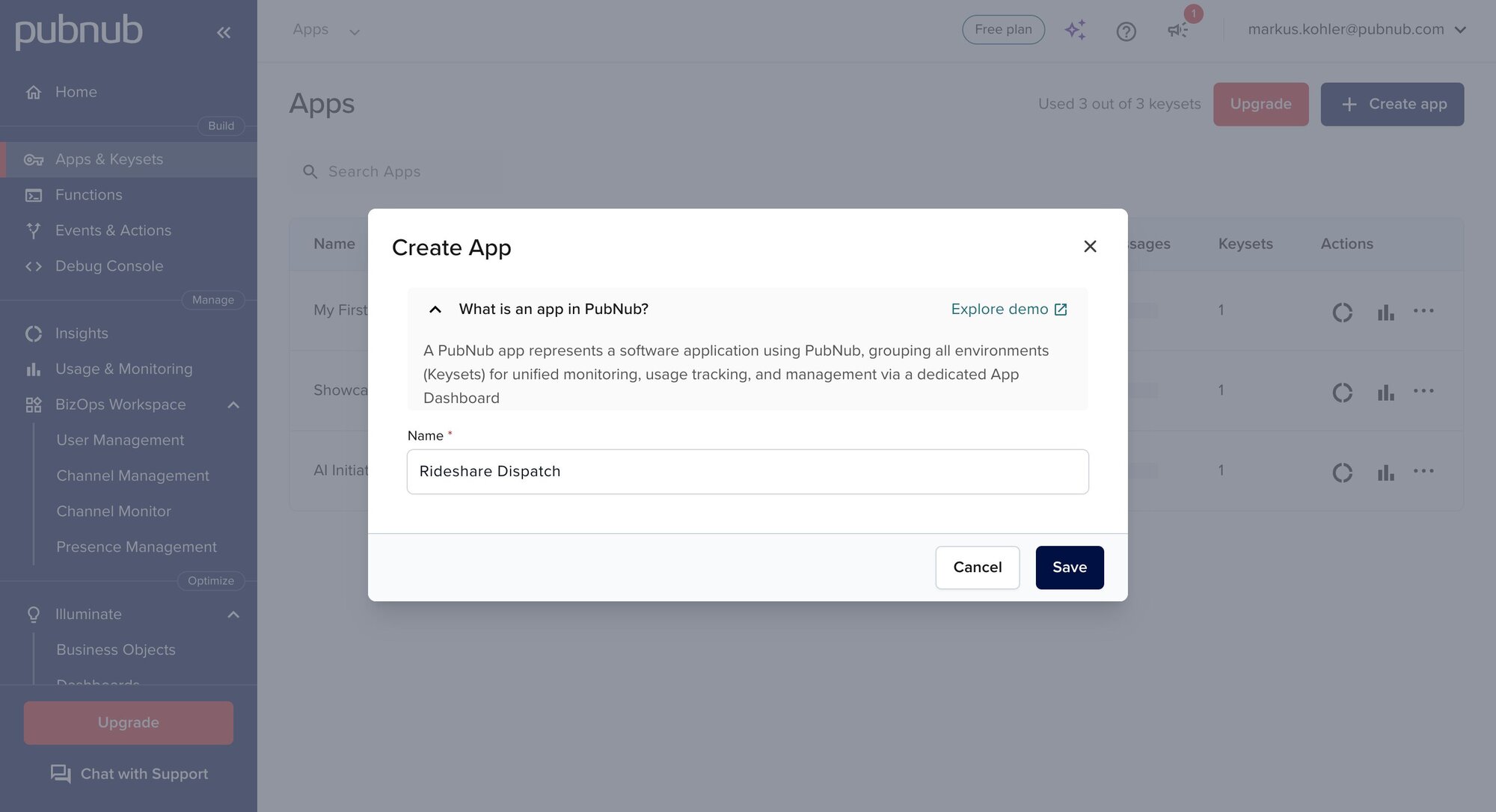

3. Click Apps in the left-hand sidebar → Create New App → name it (e.g., “Rideshare Dispatch”).

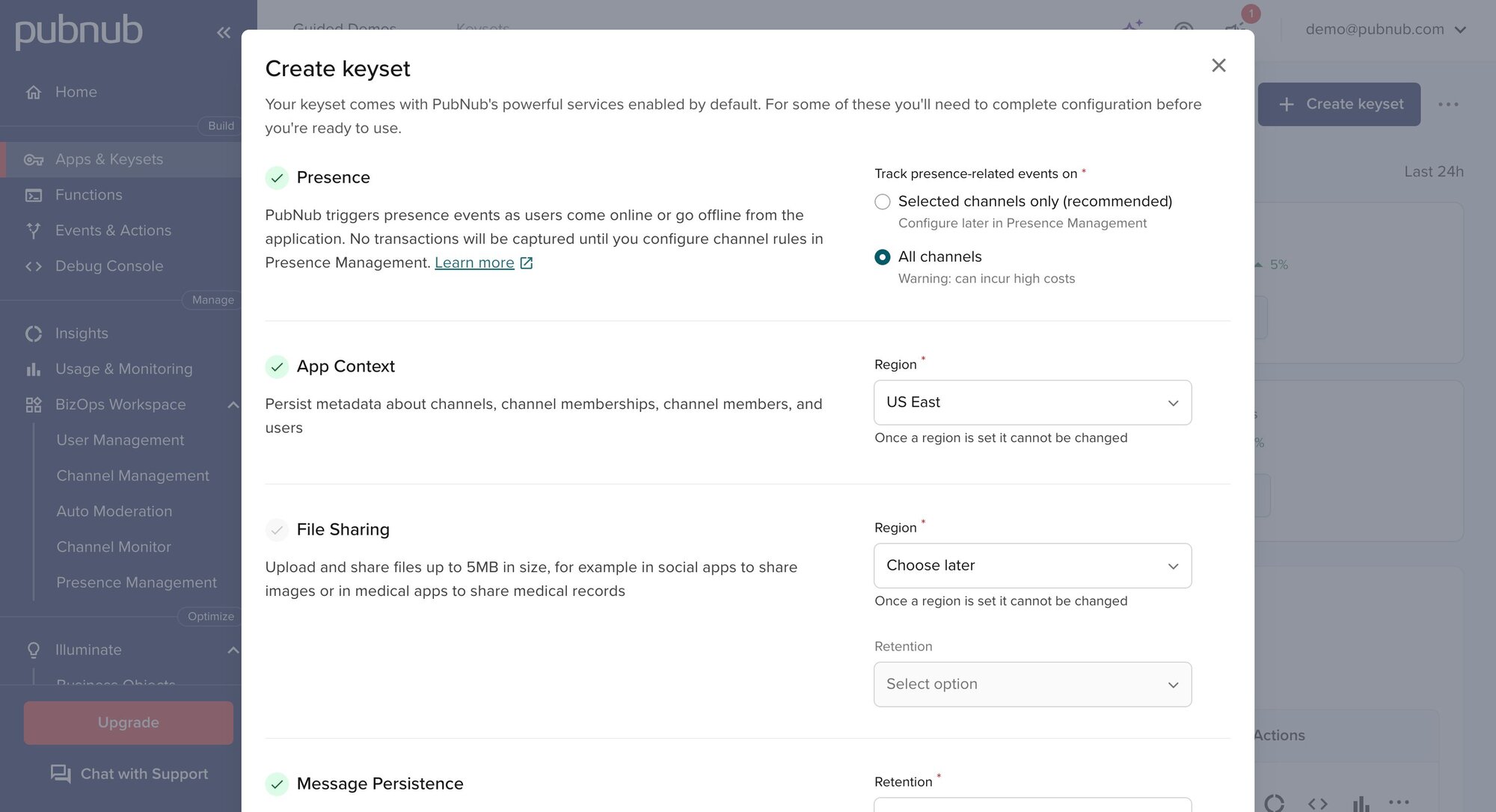

4. Create a Keyset.

Enable PubNub Features

To ensure your keyset is configured correctly: Enable:

• Presence (Select “All channels”)

• Message Persistence (1 day)

• Stream Controller (For subscribing to channels)

Leave disabled for now:

• Access Manager

Important: Don’t deploy to production without Access Manager enabled to protect user data and restrict who can publish/subscribe.

Click Save on all changes.

Google Maps API (Optional — visualization only)

Google Maps provides interactive maps, geocoding, routes, and places (points of interest). You do not need Maps to compute eligibility. H3 + PubNub handles all the logic; Maps are for debugging, demos, and operator views.

• Typical Google Maps API use case here: visualize fences, inspect traffic data, and preview route optimization impacts on driver travel time.

• Keep an eye on pricing if you exceed free tier usage; you’ll authenticate with an API key.

Setup steps

1. Create a project in Google Cloud Console

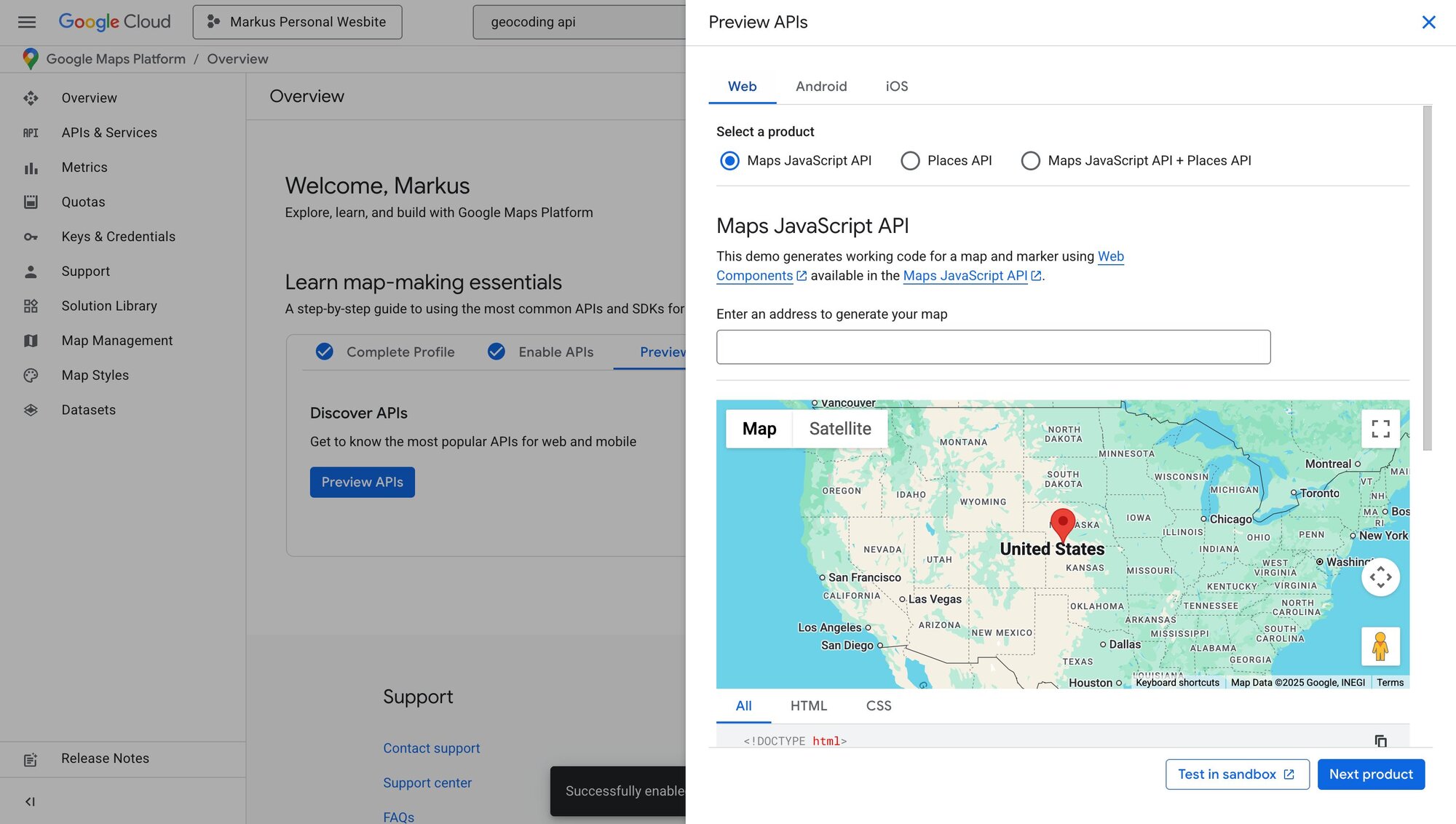

2. Enable Maps JavaScript API

3. Enable Places API and Geocoding API


4. Create an API key with HTTP referrer restrictions

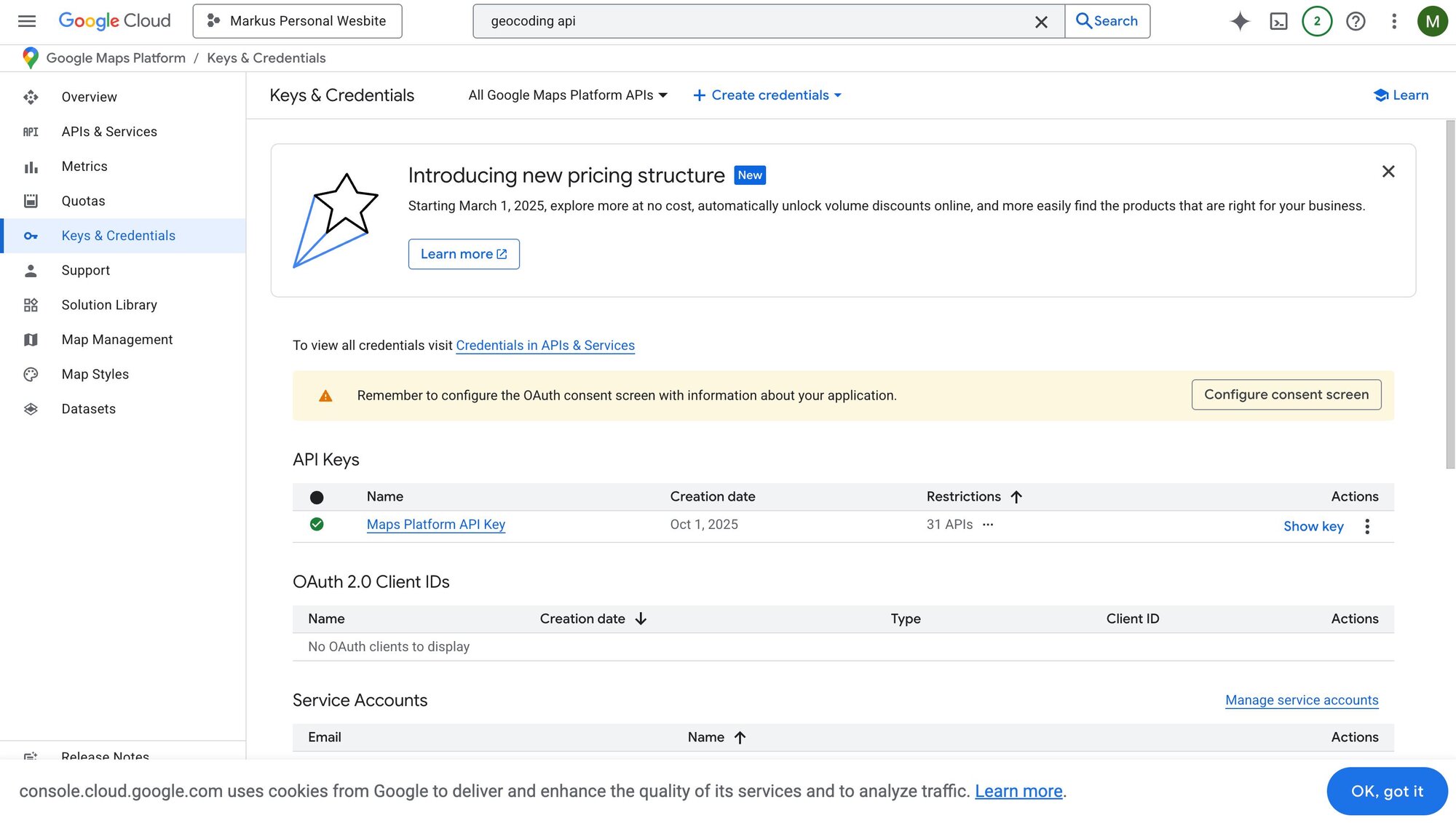

5. Go to “Keys & Credentials” from the sidebar to view your key

6. Store your key:

Other map options (optional):

• Mapbox: highly customizable styling (great for branding)

• HERE: strong routing/logistics in EU/Asia

Create the Project

Install Dependencies

We’ll focus on H3 for geofencing and PubNub Presence/State for the inZone flip.

Why these:

• pubnub — real-time Presence/State for inZone flips and lightweight events.

• h3-js — converts GPS positions to hex cell IDs and polyfills polygons to cell sets; constant-time eligibility checks.

• @turf/turf — union/simplify/buffer messy real-world polygons before hex-filling.

• @googlemaps/js-api-loader (optional) — loads the Maps JS API (display/debug only).

Accuracy note: device geolocation blends GPS/Cell/Wi-Fi signals; on mobile devices, Google Play services (Android) and Apple Core Location (iOS) manage sensor fusion.

Environment Variables

Use public envs for browser code. In Next.js, public keys must start with NEXT_PUBLIC_.

Optional: Visualizing Your H3 Fence on a Map

Heads-up (example-only): The map code below is just to visualize your hex fence. It’s okay if it doesn’t fully click yet — we’ll revisit and it explain what is going on later in the tutorial. lib/renderH3.ts

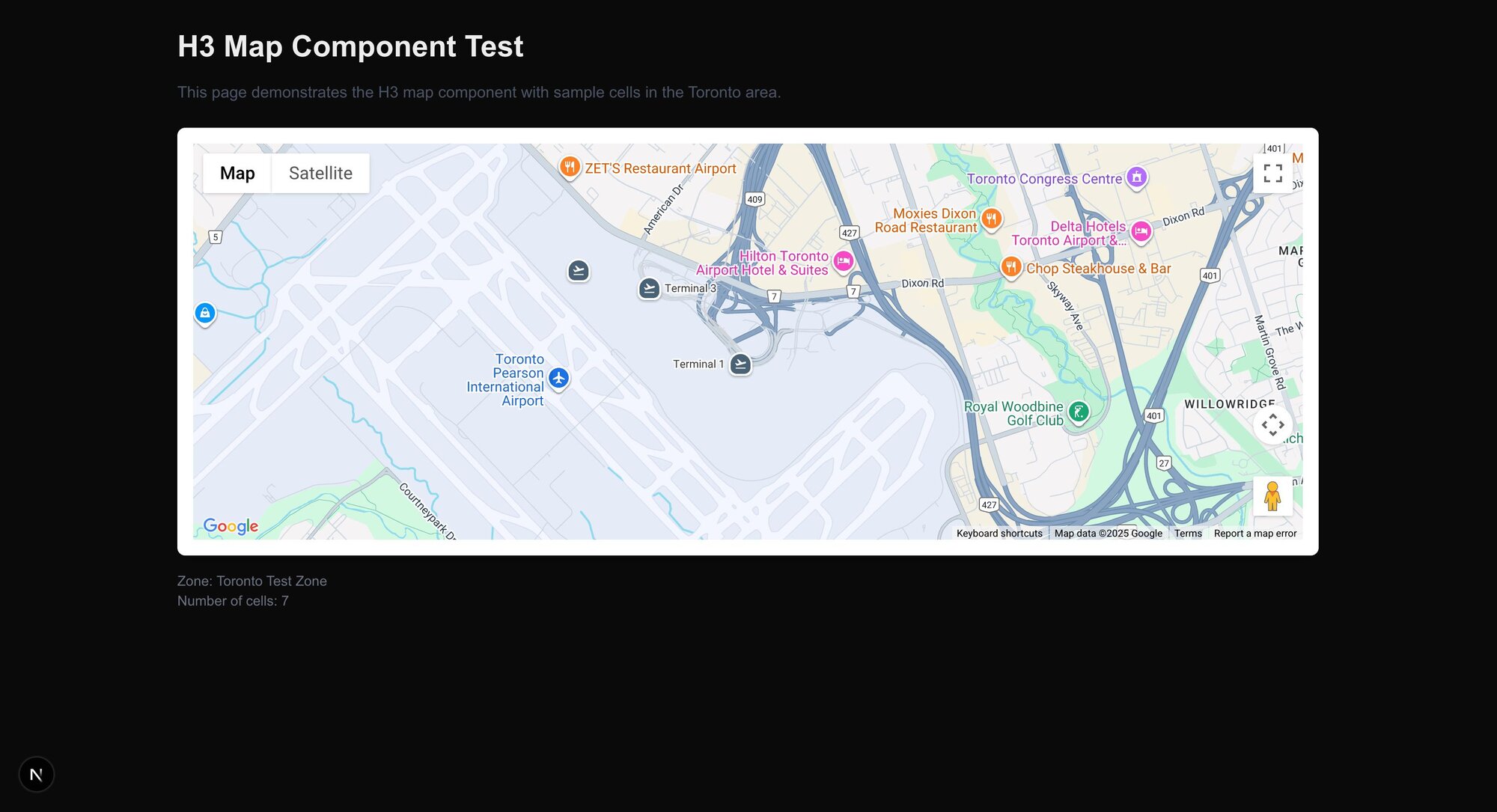

If the code is running properly, you should see a map zoomed in on the Toronto International Airport.

I was able to send in a prompt into Cursor using the “auto” model feature, as well as copying the .env that was defined above with the appropriate keys.

“I saw this code in a blog post. I need it to run in a React or Next.js project. Start the project by using terminal commands and using the code defined above. Also, use the following .env file for any key needed.”

Feature 1 — Geo-fenced Driver Eligibility

Problem: Riders expect fast, fair pickups. That starts with considering only drivers inside the pickup zone (airport lot, stadium curb, venue circle). Letting outside drivers jump the line creates disputes.

Solution: Use a discrete global grid (H3). Eligibility becomes: “Is the current location currently inside one of our allowed hex cells?” This is fast, stable, and scales naturally.

What we’ll use (and why)

• H3 (hex grid) — h3-js

  • polygonToCells (offline) to convert venue polygon → allowed hex cells

  • latLngToCell (device) to convert GPS → current cell ID

  • gridDisk (device/server) to add a small neighbor buffer (reduces edge jitter)

  • Start with res 9–10 (~174m / ~66m edge). Tune after field tests.

• Geo preprocessing — @turf/turf
  Clean real-world shapes (union/simplify/buffer) before hex-filling.

• Zone geometry (data) — OpenStreetMap via Overpass Turbo
  Export venue polygons as GeoJSON (free & fast). Follow ODbL attribution.

• (Optional) Map display — Google Maps
  Use Maps for visualization only. Keep H3 as the source of truth.

• Presence/State — PubNub Presence
  Publish a tiny state { inZone, h3, lastSeen, zoneVersion } to zone/<ID> only when the flag flips (saves battery; easy to scale) and trigger driver notifications for in-app UI updates.

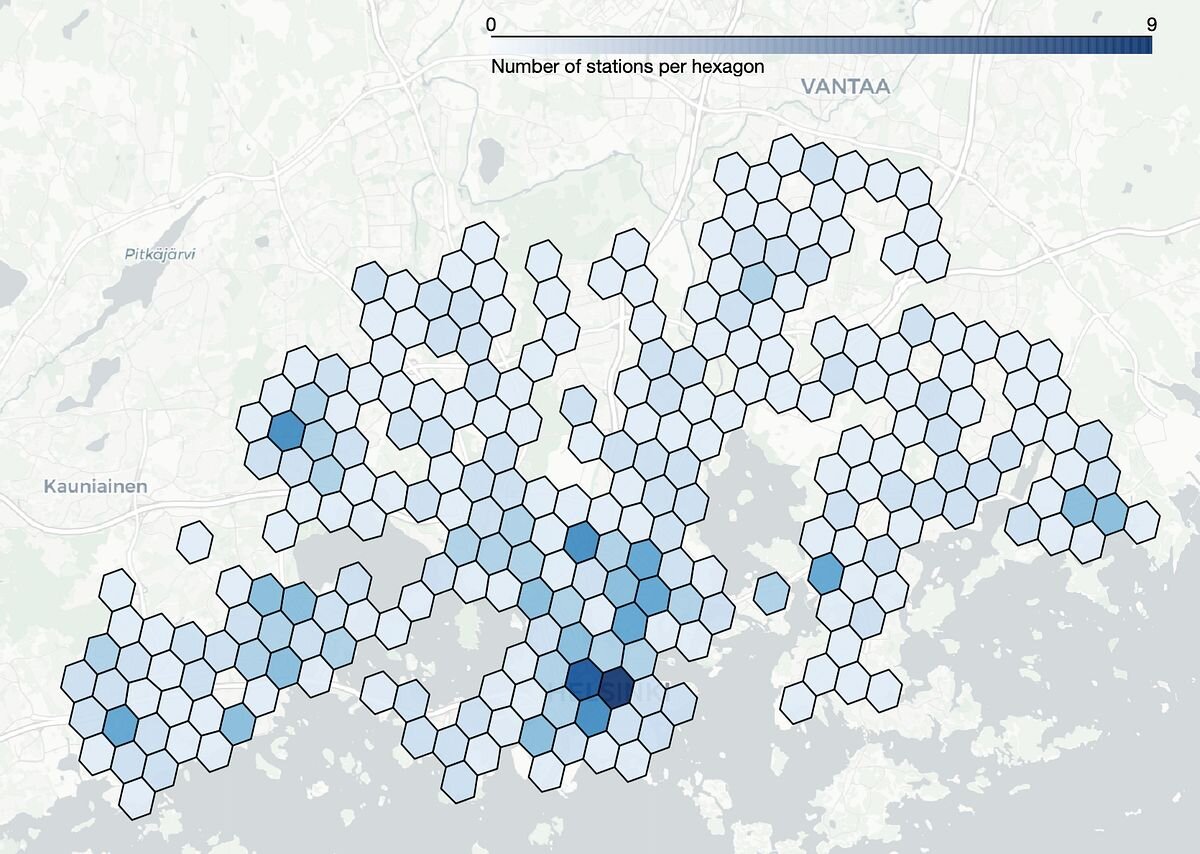

Why hex cells over polygons?

• Speed: point-in-cell is a hash lookup (no heavy point-in-polygon math).

• Smooth edges: add a neighbor buffer (gridDisk(k=1)) to tolerate GPS jitter.

• Sharding: cells are natural routing keys for channels, storage, dashboards, and backend rate-limits.

Where the zone polygon comes from (repeatable workflow)

You need a GeoJSON polygon for your pickup zone (airport staging lot, stadium curb, etc.). A simple, field-tested flow:

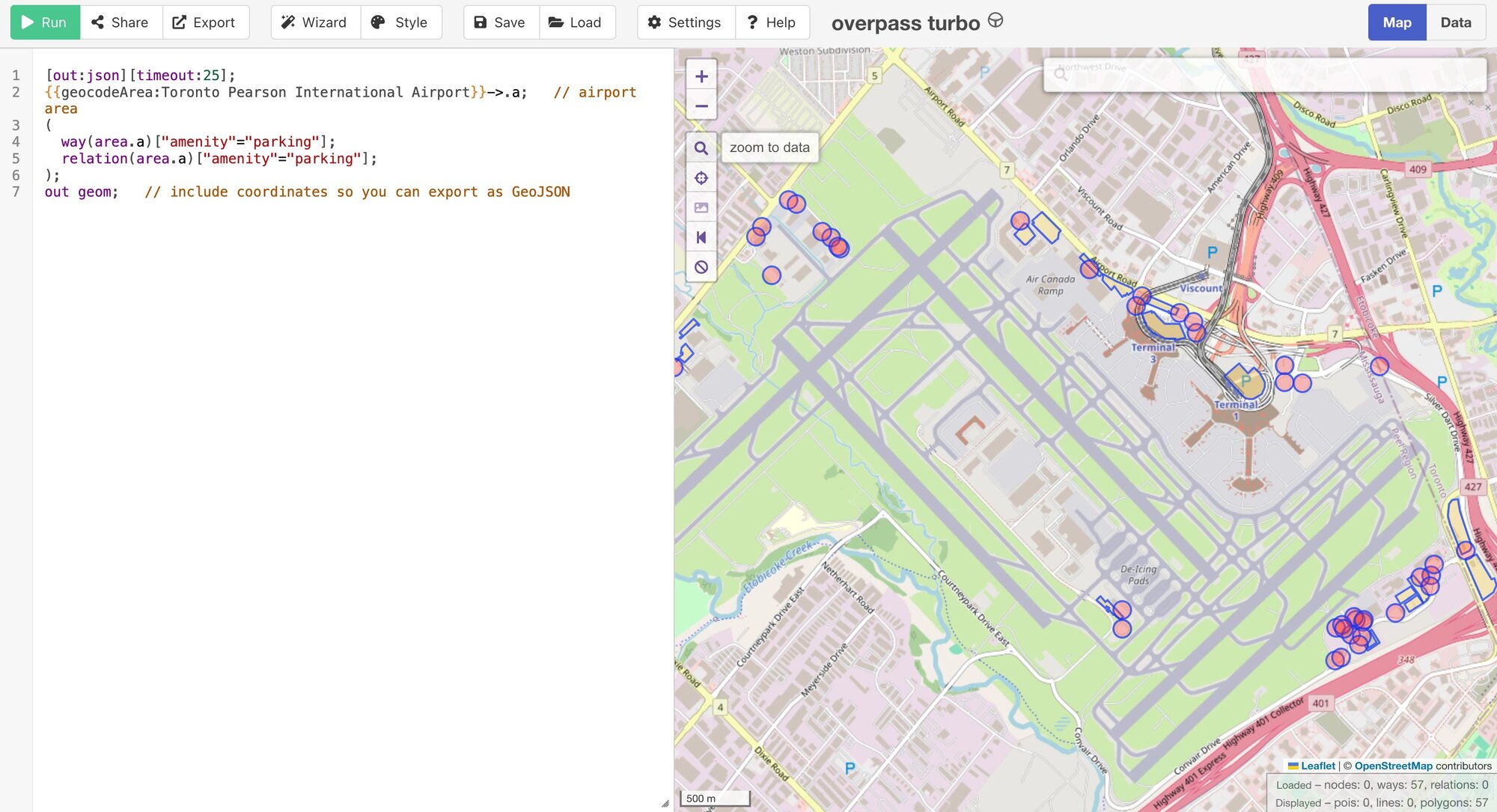

1. Open Overpass Turbo and zoom to the venue.

2. Use the Wizard to search by tags (e.g., amenity=parking) or a named area.

3. Run a query and Export → GeoJSON.

Example — parking inside an airport area (Overpass QL):

If you have multiple shapes, union them. If they’re very detailed, simplify a bit to avoid an enormous cell set (Turf helps).

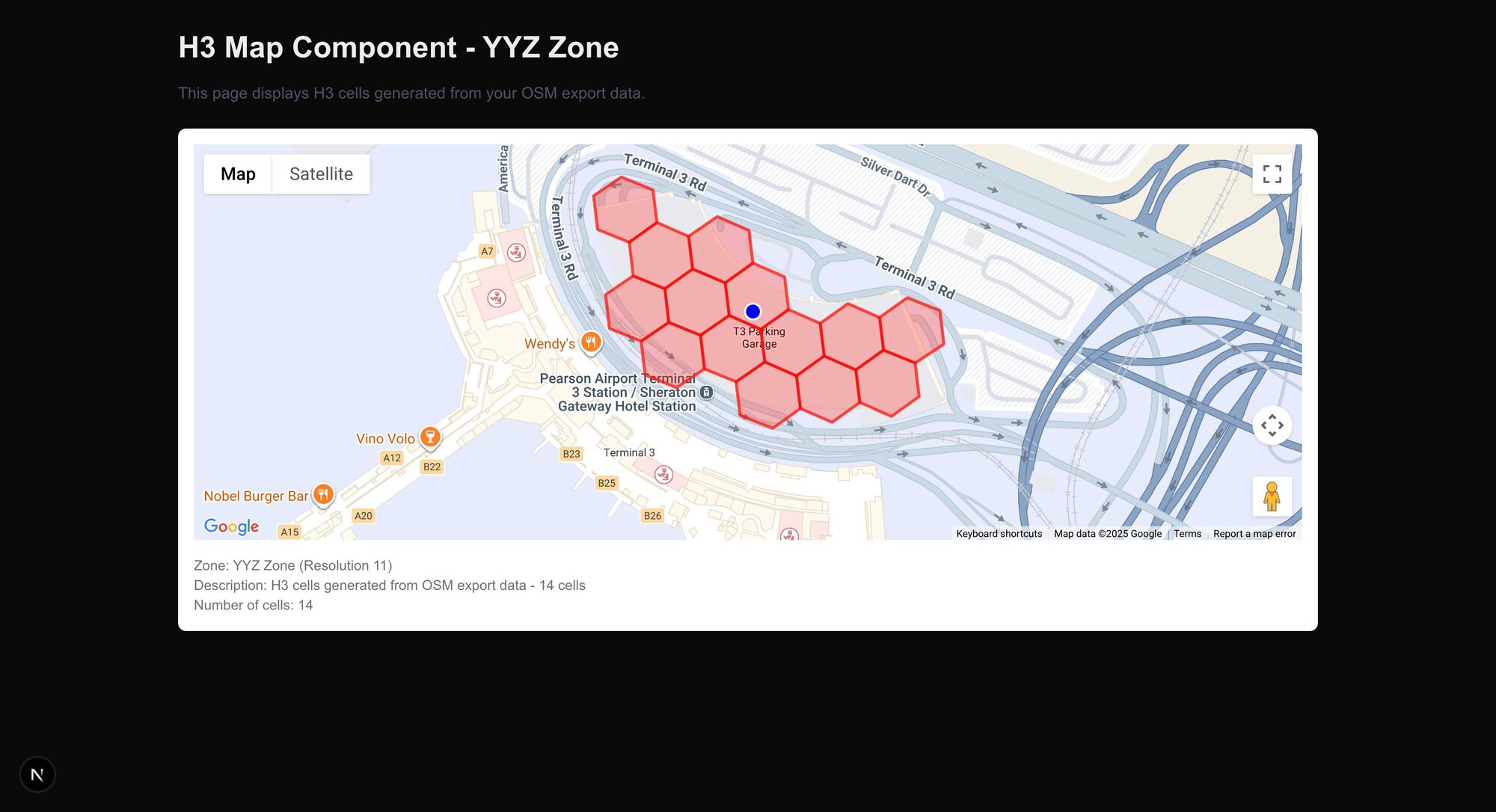

Build once (offline): polygon → hex cells

We do this offline, so the app just downloads a versioned JSON of allowed cells at startup. tools/build-zone.ts

File layout

Keep fences versioned (zones/<ZONE>/v1.json, then v2.json as lots change). Your app can hot-swap without redeployments.

Client: compute current cell → set ‘inZone’ via PubNub

Load the zone JSON, compute the device’s current H3 cell from lat/lng, add a small hysteresis buffer (neighbors), and set driver Presence state on a single zone channel. Publish only when inZone changes. lib/geoEligibility.ts

Server guard: make the server the source of truth

For the tutorial, you can use client-side setState, but for production, verify eligibility server-side (so clients can’t spoof inZone). A tiny Node microservice works well. server/eligibility.ts

server/zones-cache.ts

Why bother with a server?

• Prevents tampering with inZone/h3.

• Lets you roll out new fence versions centrally.

• Keeps your secret key safely on the server (never ship it to clients).

• Works great with Access Manager (restrict who can set state on zone/*).

• Leaves room to add driver notifications, surge pricing, and automate fleet management rules later. Picking a resolution (quick guide):

• Res 9 (~174 m edge): airport lots, big venues

• Res 10 (~66 m edge): curbs, parking rows, stadium gates Choose the coarsest res that still feels fair at the curb — fewer cells → fewer updates and simpler ops. If you see “flapping” at edges, use the neighbor buffer (k=1) before jumping to a finer resolution. Gotchas & Guardrails

• GPS drift near edges: add the neighbor buffer and flip inZone only after two consecutive confirmations.

• Bad actors: lock setState behind Access Manager roles; prefer server-side updates.

• Version drift: include zoneVersion in state; if the client lags behind the server, the server wins.

• Multi-venue cities: keep one channel per zone (zone/SFO, zone/YYZ), not per city; shard further by cell only if you need hyper-local fan-out.

• Testing: try both outdoor GPS and Wi-Fi-heavy urban areas to validate behavior.

Feature 2 — Fair FIFO Dispatch Queue

Problem: Even with a geofence, “who gets the next trip?” can devolve into chaos. Drivers need a predictable first-in/first-out queue to trust the system.

What we’ll build: When a driver becomes eligible (inZone: true), they join the queue with a joinTs. When a rider request arrives, the next driver is assigned and removed from the head of the line. If they don’t accept within a grace period, they’re bumped, and the next driver is notified. This helps optimize rider wait times and travel time while enabling clear in-app experiences.

We’ll wire a tiny Queue Visualizer into a Next.js page. It’s client-side here; in production, make a PubNub Function your queue authority. lib/pubnub.ts — a safe, client-only singleton

lib/queue.ts — minimal client-side authority (demo only)

components/QueueVisualizer.tsx — the interactive UI

app/queue/page.tsx — Next.js page (App Router)

If you’re using the Pages Router, create pages/queue-visualizer.tsx with the same component and export a default page instead.

Production Notes

• Make a PubNub Function the queue authority: on join/leave/request, update a stored list (sorted by joinTs), publish assign, enforce a grace timer, and prevent clients from spoofing joinTs.

• Guard channels with Access Manager (drivers vs. riders).

• If a metro is busy, shard queues by geocode/geohash prefix (e.g., queue/SF/9q8).

• Persist queue state (Message Persistence or a KV in your Function) for resilience.

• Add in-app notifications for assignment pings to elevate user experience.

(Optional) Showing Nearby Eligible Drivers on the Map

Once Feature 1 is live, you can show only eligible drivers on the rider map:

Consider filtering by current location proximity, traffic data, and routing ETA for better route optimization and real-time tracking.

Wrap-Up and Next Steps

You now have the core building blocks of a rideshare dispatch system:

• Geo-fenced eligibility with H3 + PubNub Presence/State

• A fair FIFO queue with a tiny interactive visualizer (move logic to PubNub Functions for production)

Where to go from here

• Add a grace window (e.g., 30s) before bumping an assigned driver

• Integrate a nearest-driver prefilter (distance threshold) before FIFO to reduce travel time

• Build a lightweight operator dashboard that watches queue length and rider wait times or utilize PubNub Illuminate

• Add fleet management & analytics, surge pricing, and automate safety checks

• Expand to iOS/Android mobile devices with in-app UX polish and push notifications

FAQs

Q: Does this require Google Maps to work?
A: No. Maps are optional for visualization only. The geofencing eligibility works with H3 + PubNub using raw location data from the device (geolocation) whether on iOS or Android (Google Play services / play services).

Q: Will Wi-Fi affect accuracy?
A: Yes. In dense urban areas, Wi-Fi improves indoor fixes. Validate fences outdoors and indoors for the best user experience.

Q: How do I control costs/pricing for Google Maps?
A: Use an API key with referrer restrictions and monitor pricing in Google Cloud. For this tutorial, Maps are optional.

Q: Can I extend this to driver ETA and smarter assignment algorithms?
A: Definitely—feed routing, route optimization, and traffic data into your assignment algorithms to improve fairness and customer satisfaction.

Q: What about backend frameworks and dependencies?
A: Any Node/Express stack works. Keep your backend minimal, restrict secrets to the server, and version your fences. Add only the dependencies you need.

Q: Does this approach fit taxi companies and service providers?
A: Yes. It’s suitable for taxi companies, aggregators, and service providers modernizing legacy dispatch, and for startups shipping an MVP.

Resources

• PubNub Docs: Core SDK, Presence, State, Objects (App Context), Access Manager

• Google Maps Docs: Maps JavaScript, Geometry Library, Places (Google Maps API)

• H3: https://h3geo.org/

• OpenStreetMap & Overpass: https://overpass-turbo.eu/
