IN THIS ARTICLE
WebRTC, so hot right now. If you haven’t heard of it, WebRTC (Web Realtime Communications) is an API that enables peer-to-peer video, audio, and data communication in a web browser with no plugins, frameworks, or applications required.

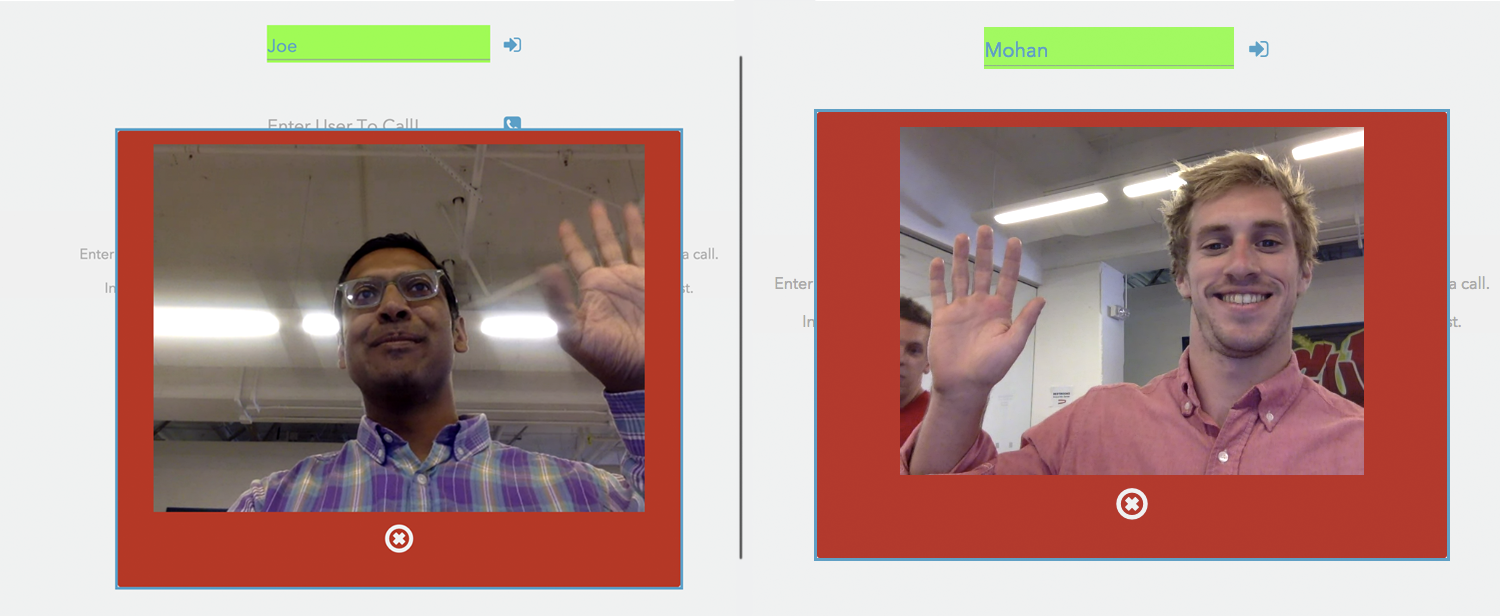

Check out the live WebRTC video chat demo here, open up two windows, and watch it in action!
That’s right! Let’s get to it.
Quick Note on Testing and Debugging
If you try to open
file://<your-webrtc-project> in your browser, you will likely run into Cross-Origin Resource Sharing (CORS) errors since the browser will block your requests to use video and microphone features.
To test your code you have a few options. You can upload your files to a web server, like Github Pages if you prefer. However, to keep development local, I recommend you setup a simple server using Python.
To do this, open your terminal and change directories into your current project and depending on your version of Python, run one of the following modules.
For example, I run Python2.7 and the command I use is
python -m SimpleHTTPServer 8001. Now I can go to
http://localhost:8001/index.html to debug my app. Try making an
index.html with anything in it and serve it on localhost before you continue.
Step 1: The HTML5 Backbone
For the sake of the demo, let’s keep the HTML short and simple. First we need a div to house our videos. Then, all we really need to start off with is a login field so you can specify your name and a call field so you can dial someone.

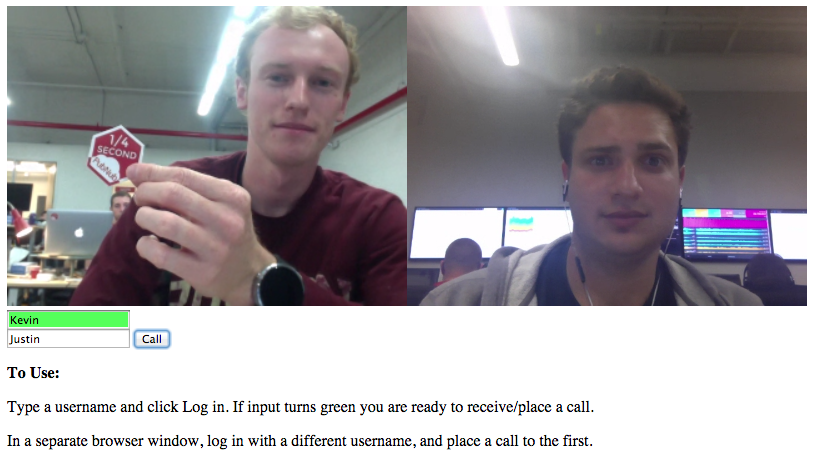

This should leave you with an elaborate, well styled HTML file that looks something like this:
There are three libraries that you will need to include to make WebRTC operations much easier:
- Include jQuery to make modifying DOM elements a breeze.
- Include the PubNub WebRTC SDK to make placing phone calls as simple as calling the
Now we’re ready to write our calling functions for
Step 3: Preparing to Receive Calls
In order to start facilitating video calls, you will need a publish and subscribe key. To get your pub/sub keys, you’ll first need to sign up for a PubNub account. Once you sign up, you can find your unique PubNub keys in the PubNub Developer Dashboard. The free Sandbox tier should give you all the bandwidth you need to build and test your WebRTC application.
Next, we’ll implement the login function. This function will set up the phone using the username they provided as a UUID.
You can see we use the username as the phone’s number, and instantiate PubNub using your own publish and subscribe keys. The next function,
phone.ready, allows you to define a callback for when the phone is ready to place a call. I simply change the username input’s background to green, but you can tailor this to your needs.
phone.receive function allows you to define a callback that takes a session as a parameter for when a call event occurs, whether that be a new call, a call hangup, or for losing service, you attach those event handlers to the sessions in
session.connected which is invoked after receiving a phone call, and when you are ready to begin video chatting. I simply appended the session’s stream to our video div.
Then, I define
session.ended which is called after invoking
phone.hangup. This is where you place end-call logic. I simply clear the video holder’s innerHTML.
Step 4: Making Calls
We now have a our WebRTC video app ready to receive a call, so it is time to create a
window.phone is undefined, we cannot place a call. This will happen if the user did not log in first. If it exists, we use the
phone.dial function which takes a number and an optional list of servers to place a call.
And that is it! You now have a simple WebRTC video chat app. Fire up your python server and go test your app on localhost!
In our next two parts, we walkthrough how to add a number of additional features to your WebRTC video chat application, including: make/end Calls, thumbnail streams, mute call, pause video, and group chatting. We’ll also walk through how to create live embeddable streaming content (ie. how to build Periscope with WebRTC!).
Why PubNub? Signaling.
WebRTC is not a standalone API, it needs a signaling service to coordinate communication. Metadata needs to be sent between callers before a connection can be established.
This metadata includes things such as:
- Session control messages to open and close connections
- Error messages
- Codecs/Codec settings, bandwidth and media types
- Keys to establish a secure connection
- Network data such as host IP and port
Once signaling has taken place, video/audio/data is streamed directly between clients, using WebRTC’s
PeerConnection API. This peer-to-peer direct connection allows you to stream high-bandwidth robust data, like video.
PubNub makes this signaling incredibly simple, and then gives you the power to do so much more with your WebRTC applications.
WebRTC is widely adopted by popular browsers such as Chrome and Firefox, but there are many browsers on which certain features will not work. See a list of supported browsers here.
Want to learn more?
Good, that never-ending quest for knowledge will get you far in life. Here are some other resources PubNub offers on WebRTC:
