    This two part tutorial walks you through how you can create your own Bluetooth fitness tracker (think Fitbit) using Arduino and Cordova. You might not have any experience with Arduino or Cordova, but don’t worry! Both technologies are extremely simple and were not even going to wire anything! In fact, we’ll be talking to our Arduino over Bluetooth before we even write our first line of code.

    Bluetooth is one of the most popular protocols for wireless communication between devices. It powers a countless number of devices, from speakers to smartwatches, headsets, fitness trackers, and so much more.

    Hardware Required for the Bluetooth Wearable

    TinyCircuits

    TinyCircuits

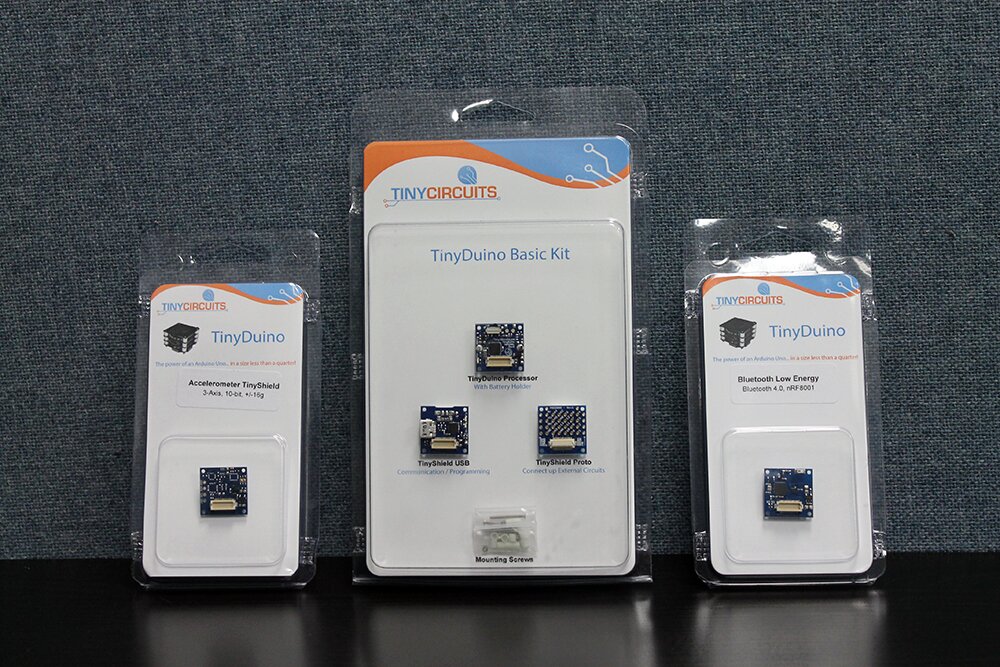

    First things first. This ain’t your momma’s software demo, we’re gonna need some real hardware for this one. Everything here should cost you just less than $100 and at the end of it all you’ll be communicating wirelessly between your phone and an Arduino like magic.

    We’re going to be using TinyCircuits products for the Arduino side of things? Why? Because TinyCircuits is a totally awesome miniature Arduino platform about the size of a quarter. The shields snap together like LEGOs, leaving us nothing to wire.

    Even better, the TinyDuino are so small that they can function as a fitness band themselves! No need to ship your schematics off to China, just strap these babies onto your wrist and you’ll be a self gamified cyborg in no time.

    Bluetooth Wearable Part List

    So here’s the big list of the stuff you gotta have:

    • An Android or iOS device
    • The respective syncing cable for above device
    • TinyCircuits TinyDuino Basic Kit
    • TinyCircuits Accelerometer Tinyshield
    • TinyCircuits Bluetooth Low Energy
    • A microusb cable with data capabilities for TinyDuino

    I’m betting you already have an Android or iOS device on you. I bought all the TinyDuino stuff at my local Fry’s Electronics. You can find it near the Arduino gear.

    If you don’t live near a Fry’s, you can order the TinyCircuit hardware online here.

    Note: This hardware list uses a Nordic Bluetooth Low Energy chip. Bluetooth Low Energy (BLE) is designed to provide similar features to Bluetooth with reduced power consumption.

    Getting Started

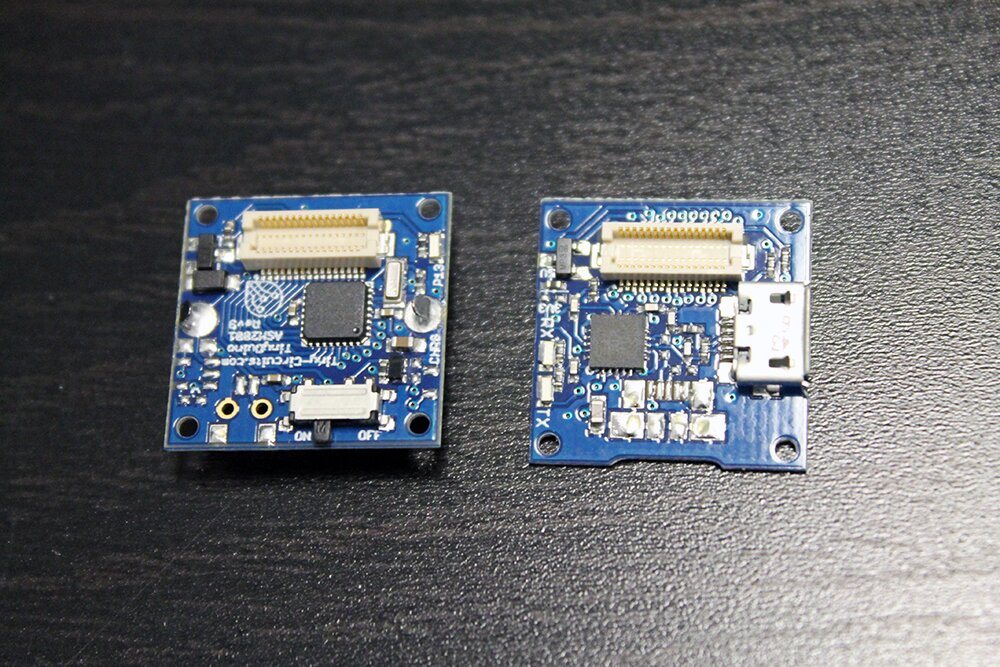

    Let’s get it started in here. Pop open the clamshell packaging that the TinyDuino components come in. We’re going to be working with the Processor and USB shield for now.

    TinyCircuits Processor and USB Shield

    TinyCircuits Processor and USB Shield

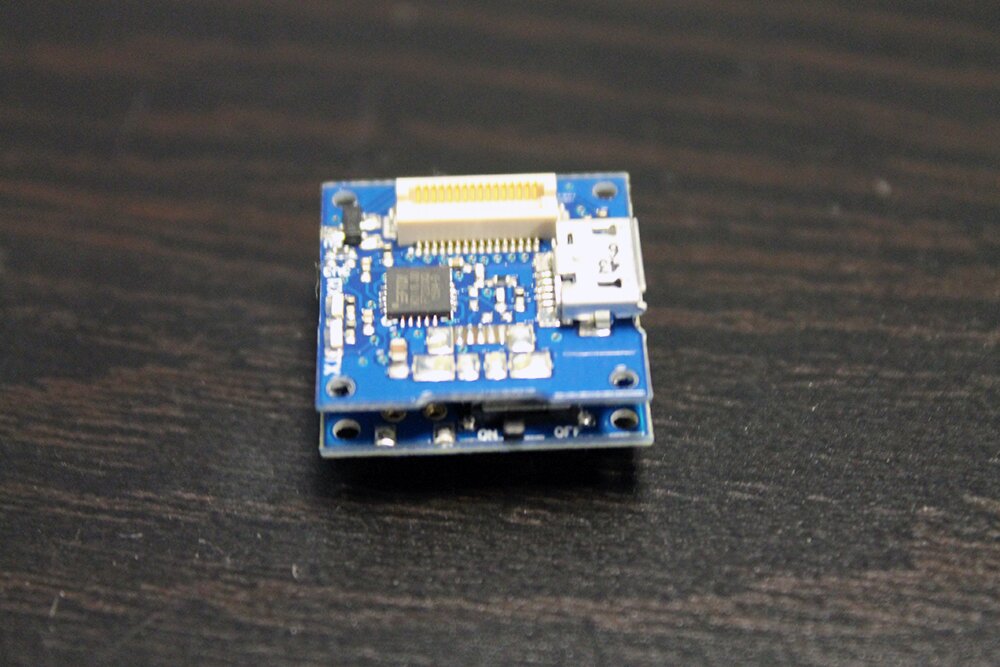

    Stack the components one on top of another like this:

    • USB
    • Processor
    TinyCircuits Stack

    TinyCircuits Stack

    Now you’ve got a super tiny Arduino platform! In fact, once you’re done programming the TinyDuino you can throw a watch battery into the Processor shield and remove the USB shield altogether! Not yet though, we still have business to take care of.

    Open the Arduino IDE, plug in the Micro USB cable into the TinyDuino, and load the normal Blink sketch. Choose “Arduino Pro or Pro Mini (3.3V, 8MHz).”

    If you need more help with getting Blink running on the TinyDuino, TinyCircuits has a great getting started guide.

    Once you’ve got blink running you’re ready for the next step!

    Arduino Bluetooth

    Alright, let’s get down to the fun parts. Snap the TinyDuino Bluetooth Low Energy shield onto the top of your stack. It should look something like this now:

    • Bluetooth
    • USB
    • Processor

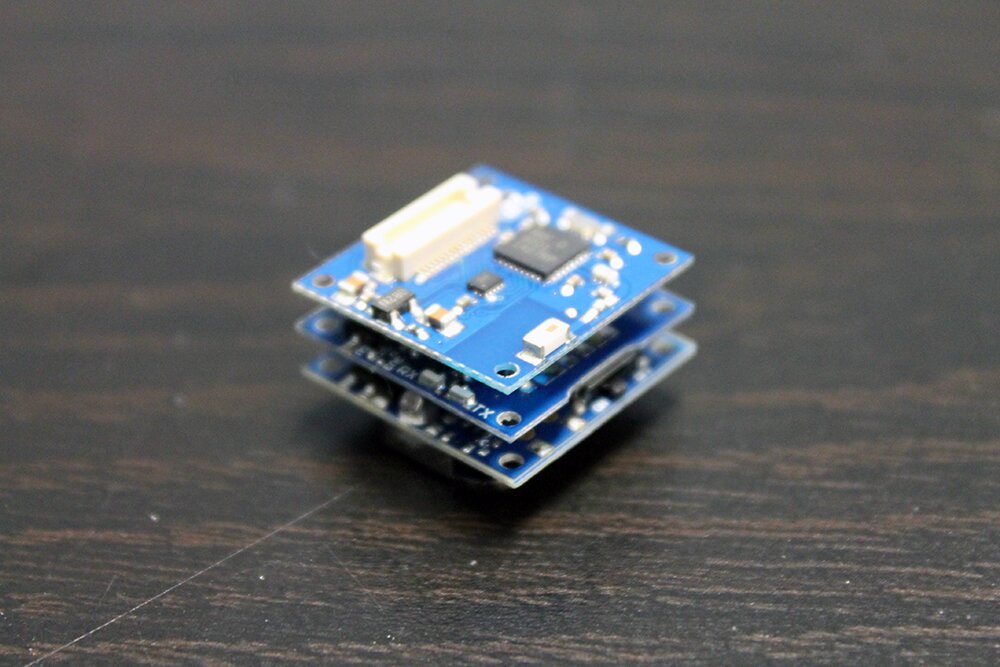

    TinyCircuits Stack with Bluetooth

    TinyCircuits Stack with Bluetooth

    At this point we’re going to step away from the Arduino IDE and instead use an online tool called CodeBender. CodeBender is an awesome cloud based Arduino programming interface that allows us to program our board using the browser. TinyDuino distributes their examples via CodeBender. You will need to install an extension to interface with your Arduino, but trust me, it’s worth it.

    Close the Arduino IDE (important!) and load this CodeBender sketch to set up the Nordic BLE connection. Select “TinyDuino” under board and find your Arduino USB location. Finally, click “Run On Arduino.”

    Fire up the Serial Monitor on CodeBender and select 115200 Baud. The example will update you with Bluetooth logs throughout the connection process.

    After a few seconds you should see the following messages in the Serial Monitor:

    Evt Device Started: Standby
    Advertising started

    Phone to Arduino Communication

    Once you’ve confirmed that the Bluetooth sketch is running, you’re ready to make your first connection! You may not see the Arduino within your Bluetooth devices on your phone, but don’t worry, this isn’t how you’ll be connecting to the device.

    Instead, we’ll connect through our application. But before we use our own application, we’re going to use an official application for debugging purposes.

    Download the NRF UART 2.0 app for Android or iPhone and launch it.

    Launch the UART app and tap the button marked “connect.”

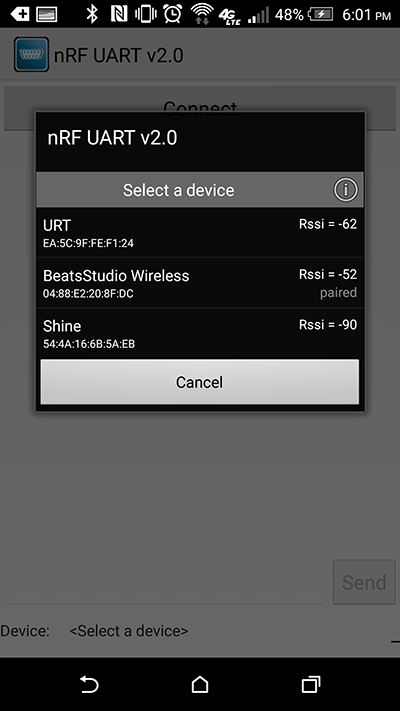

    If your Arduino is powered on, you should see a device called “URT” available. Tap on that device, and then a console should appear on your phone.

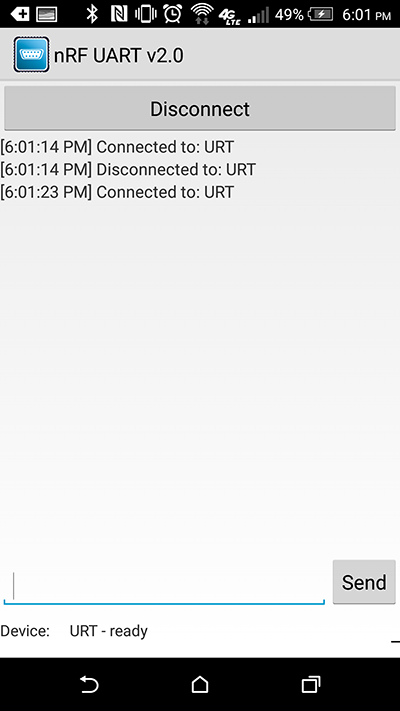

    Bluetooth Communication Setup on Phone

    Bluetooth Communication Setup on Phone

    Your phone will pair with your Arduino project and you should see the message “Connected to URT.”

    Phone Arduino Bluetooth Connection

    Phone Arduino Bluetooth Connection

    If you’re having trouble connecting, make sure your Arduino is powered on, Bluetooth is enabled on your phone, and the Arduino device is within range. Check the Arduino Serial output on CodeBender for more debug information.

    Once you’ve connected, you can type into the text field below and begin to send messages to your Arduino!

    Phone to Arduino Communication

    Phone to Arduino Communication

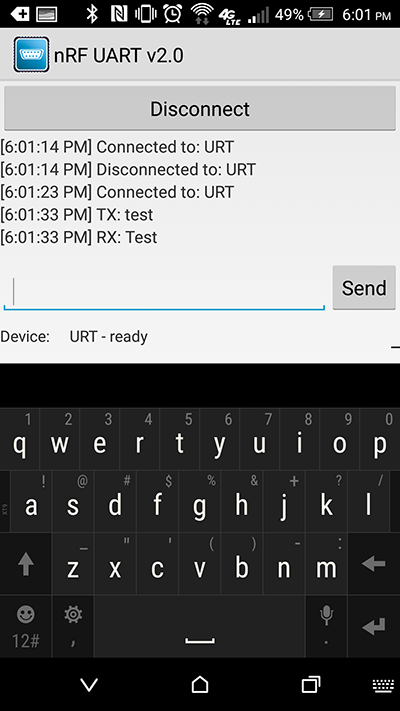

    As you send messages via your phone, you should see them echo’d within the CodeBender console as well as in the NRF UART log. Congratulations! You’ve created a basic Bluetooth device.

    At the end of this short test, my Serial Console had the following log:

    Evt Device Started: Standby
    Advertising started
    Evt Connected
    Evt Pipe Status
    Evt Pipe Status
    Evt link connection interval changed
    Pipe Number: 11
    4 bytes: test
    4
    test

    Congratulations. At this point, you have created a successful Bluetooth device. In the next part, we will build the complete bluetooth enabled fitness tracker.
