Real-time Stats for Candy Box

7 min read Michael Carroll on May 31, 2013

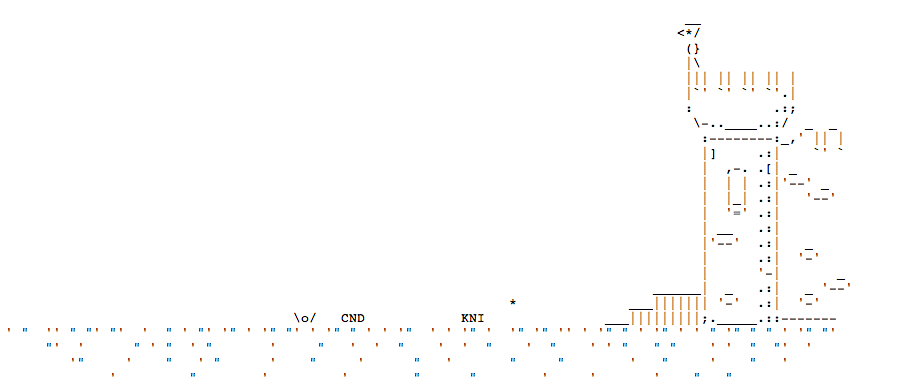

We like games here at PubNub, but not as much as we like real-time. Combine the two, and you’ve got pure mega-awesome. During the PubNub Hackathon, I took a popular text adventure game called Candy Box, and updated its stats page to provide a real-time overview of the global game real-time stats. The updated game can be played at candybox.pubnub.co, and the new real-time stats page is here. Full source code is available on github.

In this article, we’ll guide you through how the game was modified, and how to build a very simple, yet hyper-scalable server infrastructure to serve real-time stats. Today we’re using JavaScript on the client-side, and Python on the server-side. So let’s dig in!

Candy Box Multiplayer

Since Candy Box is a very new game, there isn’t a public source code repository available. So I started this project by mirroring the original website, candies.aniwey.net, with wget. It’s also possible to load the URL into a browser and use File->Save Page As… to get a complete local copy of the game.

Download the Game Code

With all of the JavaScript downloaded, I had to make some minor adjustments in some places to get a few things working correctly. Loading and saving had to be modified; moving some of the original server-side logic right into JavaScript. I’ll spare the details, and the curious among you can have a look at load.js for some insight. To allow saving, the stats server just proxies save requests to the original server. The proxy is required because the original server does not support CORS, meaning newer browsers will reject the save attempt.

Building the Real-time Stats Server

With the baseline game ready, it’s time to start thinking about the server-side, particularly how to handle the high load that such a popular game will generate. High load is the reason the original stats page is updated only infrequently. The challenge is to record and report game statistics for thousands of simultaneous players in real-time, with very frequent updates (refreshing stats about once every second). With this in mind, I came up with the following list of requirements while designing the server:

  1. In-memory statistics aggregation
  2. Horizontally scalable
  3. Stateful-design, but distributed

Sounds simple, right? Do calculations in memory to make it fast, and scale horizontally to handle any load. A panacea! But how can we sum and average hundreds of thousands of accounts per second? Well, we can cheat a bit by doing the summing on the client-side, and only keep the result of the sums on the server. In other words, client logic will be responsible for calculating the deltas between each status update, so the server just needs to worry about adding those deltas into its internal state. Therefore, each status update is a snapshot in time, and the server records only the sum over all snapshots.

To share state between servers, we’ll use the same idea; deltas between updates, and periodically publish to a common PubNub channel to distribute changes to the internal state. This method of replication introduces its own challenges, such as update latencies with multiple servers. This is acceptable because the statistics in this game are quite volatile anyway. No one will notice any latencies.

Server Implementation Details

For the server, I decided to use Bottle to handle the REST interface, and gevent for non-blocking sockets. This will give us a great deal of flexibility for the server.

After writing a few stubs for the REST interface, I started on the distribution mechanism, which is just a PubNub subscribe that handles messages from other servers. Ideally, each server will periodically share the updates they have received from clients. The server only needs to add deltas from the user to its own internal delta for distribution to other servers. It can’t distribute every client request, because traffic would be much too high. And it would defeat the purpose of horizontally scaling, anyway. This is also where distribution latency comes in; a delta from a client may take a few seconds to reach every server.

Integrating PubNub

gevent makes the subscribe super easy; just the normal Pubnub.subscribe(), wrapped in a call to gevent.spawn(). There are initially two such subscribes: a “control” subscription, which will recursively re-subscribe after handling each message, and a “sync” subscription to initially synchronize with other servers.

The “control” subscription does three things:

  1. Respond to “sync” requests; providing the current game state to other servers
  2. Update config; allowing you to remotely reconfigure all servers
  3. Update game state; receive deltas from other servers

I’ll explain more about the config updating later. After Both subscriptions are established, a “sync” request is published to any listening servers. The first “sync” response that comes within 5 minutes will cause the game state to be updated with the provided values.

The server then goes to sleep until a user makes an “update” request. That will start a recursive timer (the interval is configurable) which will send stat updates to clients, and stat delta updates to other servers. The timer recursion automatically stops 5 minutes after the last user “update” request.

And that’s about all there really is to the server. You could also do some other fancy things like persisting the state to disk periodically. It isn’t a lot of data to store, but these stats are also not critical, especially for the demo.

Running the Stats Server

Starting the server is easy as well, just start the main script with python, or run it directly in a shell (it has exec permissions and a shebang). The script accepts three optional arguments for listening IP, listening port, and config file. The config file is just JSON, in the same format as in config.py

Here’s an example:

$ python main.py 0.0.0.0 8999 ~/config.json

Hacking the Client

Back on the client-side, we just need a function to record the deltas, and another to send the “update” requests to the server. I decided to use the localStorage API to record the update state between each request, allowing the deltas to be calculated correctly even after restarting the browser.

As far as security goes, I will be ignoring the possibility of cheaters for the demo. Stats can also be skewed by saves that have completed the game, because SPOILER ALERT the computer tab grants access to generating candies and lollipops at an impossible rate, and changing pretty much every variable in strange ways. SPOILER ALERT

Client requirements are as follows:

  1. Turn a blind eye to cheaters (simplifies everything)
  2. Periodically send “update” requests (once every 5 seconds is a good start)
  3. Do not send “update” requests after the game has been completed

The update interval will be once every 5 seconds by default, which will be quick enough to affect the stats updates that users end up seeing, and slow enough to handle a large number of simultaneous players with low server resources; With 2,000 users, the server only needs to handle 400 requests per second. The gevent-based server will easily handle that without a hiccup, even on commodity hardware. In fact, each server should handle about 1,000 concurrent connections. If more than 5,000 users are playing, just launch another stats server and put it behind

(reverse proxy) as a load balancer. More on that later.

The Hook

main.js is where the game loop runs. It’s implemented as a simple interval that fires once per second. This is the place to add the stats updates. The code is very simple; just throttle a function call to once every 5 seconds:

// Save to PubNub CandyBox stats server periodically
if ((this.nbrOfSecondsSinceLastMinInterval % 5) === 0) {
    stats.update();
}

The stats.update() function is where the magic happens. It records the interesting bits of game state, calculates the delta, and sends the request to the stat server.

Delta Calculation

The delta calculation is very easy (as you might imagine). I just keep a record of the last game stat after a successful “update” request (and save this object to localStorage), and the delta is calculated with a small iterator:

$.each(currentUpdate, function (k, v) {
    if (typeof(v) !== "string")
        delta[k] = lastUpdate[k] - v;
});

Should be self-explanatory, but basically the difference between values in lastUpdate and values in currentUpdate are recorded as the delta, with a safety net for the code key (not shown) which is a string value. The delta is then sent to the stats server in an “update” request.

The server does its work, and periodically publishes a message for the stats page. The listener code is in stats.js and you can see it does the percentage calculation client-side. It is otherwise incredibly basic.

Server Configuration

With the client and server ready to go, it’s time to start thinking about the operational side of the project; configuring servers, DNS, an even dynamically scaling and remote-control reconfiguration.

I’m using nginx as a host for the client code and it also doubles as a front-end load balancer for the stats server. The nginx config looks like this:

upstream stats_server {
    server localhost:8999;
    #server localhost:8998;
    #server localhost:8997;
    #server localhost:8996;
    keepalive 32;
}
server {
    listen 80;
    root /home/ubuntu/pn-candybox/public;
    index index.html;
    server_name candybox.pubnub.co;
    location /ping {
        proxy_pass http://stats_server;
    }
    location /save {
        proxy_pass http://stats_server;
    }
    location /update {
        proxy_pass http://stats_server;
    }
    location / {
        try_files $uri $uri/ /index.html;
    }
}

I did some load testing with ApacheBench and found that nginx with a single stats server can handle about 763 requests per second with 100 concurrent connections, or about 305 requests per second with 200 concurrent. All tests were done on a t1.micro AWS instance (E5507 @ 2.27GHz, 589MB RAM) running Ubuntu 13.04 with no TCP kernel tuning. This setup is good enough for our “2,000 simultaneous players” requirement.

Dynamically Scaling

With the server config in place, we can easily scale up by adding more upstream stats servers (commented in the config above). Then reloading nginx. The stats servers will automatically synchronize with one another over PubNub. We can also reconfigure the servers at runtime to tune the message publishing rates. I just have to open the PubNub console and publish a specially constructed message to the “candybox_update” channel. Here’s an example message that reconfigures the servers to publish only once every 5 seconds:

{
    "uuid"      : "master",
    "action"    : "config",
    "data"      : {
        "update_interval"   : 5
    }
}

Publish that message, and all servers will instantly adjust their message publishing interval to 5 seconds. This is just one example of what makes PubNub truly awesome. 🙂

Wrapping Up

With all of that, we now have Candy Box sending periodic updates to our stats server, and our stats servers periodically sending updates to the stats page. And it’s all done in a dynamically scalable way, with a ridiculously small memory footprint, and low bandwidth requirements.

All done! Now you should play the game, check the stats, and fork me!
